ECO-FLEX

ECO-FLEX

Wednesday, July 27, 2016

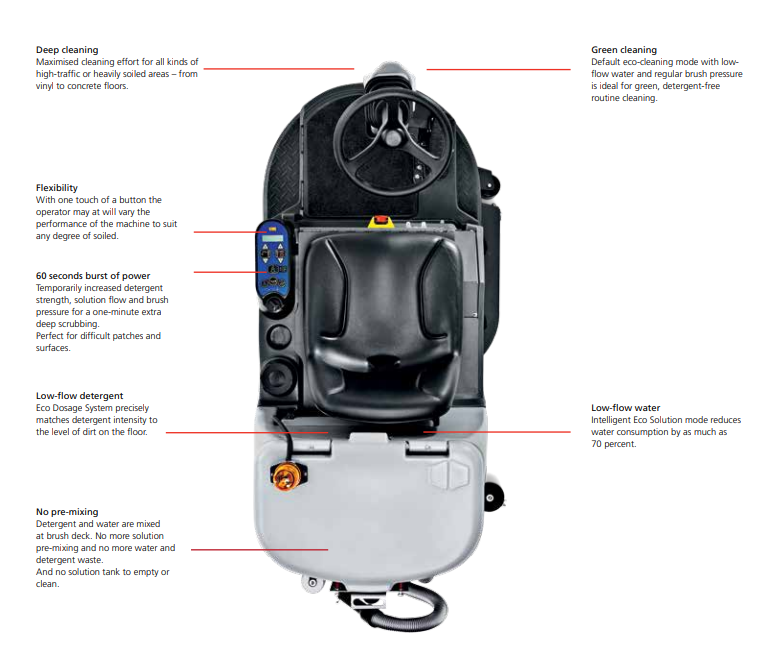

 Ecoflex is the ultimate hard floor cleaning solution. This innovative technology is exclusive to Nilfsik and available on many of their scrubbers and scrubber/sweeper combos.The sate of the art technology behind Ecoflex allows for the user to alter the chemical flow to suit their needs and effortlessly switch between different cleaning intensities at the touch of a button.

ECONOMICAL, GREEN, EFFICIENT

Cleaning modes and intensities include:
Low-Flow water- Eco solution mode reduces water consumption by as much as 70 percent.
Chemical free - Water only cleaning ideal for up kept surfaces with minimal soiling, Eco friendly and economical cutting down on detergent costs.
Ultra low chemical- Low Chemical to water ratio ideal for surfaces with moderate traffic and standard soiling .
Standard detergent ratios- Chemicals mixed according to product guidelines ideal for high traffic areas with moderately soiled surfaces.
Full strength chemical cleaning burst-  Prefect for difficult patches and surfaces and high intensity increase in brush pressure, solution flow and detergent strength for 60 seconds.

These ecoflex options are all in one machine and at the touch of your fingers.The ability to alter the amount of chemical used when cleaning hard floors results in one of the greenest and most cost effective cleaning solutions available.Different areas, floor types and facilities need different cleaning and with the ability to easily select the right blend of brush pressure, water and detergent, you can tackle any cleaning challenge effortlessly. The highly user friendly control allows you to add that extra muscle for heavily soiled surfaces, floor tiles, concrete or epoxy floors.

Ecoflex machines are not only green and cost effective they are easy to use with no premixing of chemicals needed it is as simple as fill and go.The adjustments of detergent to suit the floor type enables the perfect amount of detergent every time.Green cleaning is good for business and the environment, the use to custom detergent ratios significantly reduces waste and prevents overuse of chemicals when unnecessary. The Ecoflex was designed with professionals in mind,a routine can be developed that works for you and quickly adjust to whatever the job demands. Be prepared to get more out of your budget, clean with less impact to the environment and maintain clean, shiny floors when you do.

Use of the '60 second burst mode' allows a heavy duty cleaning option when you come across unexpected mess .For 60 seconds the machine will increase the brush pressure , water and detergent after which the settings will return back to their previous green cleaning, however if the mess if cleaned before the 60 seconds merely press the boost button again and return to your previous settings .

Nilfisks Ecoflex cleans using normal tap water, there is no need to buy expensive,gimmicky,electrically-activated water.The combination of tap water ,environment appropriate chemicals and the correct setting enables as good a clean as any . The use of plain tap water in Ecoflex machines means that they can be used anywhere without the complicated fuss of additional chemicals and steps .The Ecoflex system is simple , green and cost effective whilst providing a professional clean that will exceed expectations.

Thiess Custom Build

3000Psi @ 15 lpm, Diesel Mine spec Pressure Cleaner built for Thiess Pty Ltd

This project was a custom-built unit specifically built for Thiess Pty Ltd for use at BHP Mount Arthur and to be compliant with Mt Arthur’s stringent requirements for pressure cleaners on site.

The unit is powered by a genuine 10Hp Yanmar diesel engine matched to a low speed premium series Comet pump with a performance of 3000Psi at 15 lpm. The 1440 RPM run speed at the pump is accomplished by driving the pump through a 2:1 reduction gearbox.

The Yanmar engine features electronic push button start with key shutdown achieved by running a Deep-Sea Engine Controller mounted to a stainless-steel control box with emergency stop and four poly lockable battery isolator. The engine also has oil pressure and charge failure protection fitted to the controller.
A spark arrester was fitted to the exhaust of the engine and long range 20L Stainless Steel fuel tank was fitted to the frame along with fuel priming pumps and filters.

The pump has a soft unloader that does not hold pressure in the lines and as per site regulations over pressure safety device with test certificate is fitted to the high-pressure side of the pump.
The pump is protected by a large 1” disc filter which will filter the water down to 100 Micron. There is also enough water in the filter to act as a cooling bypass, which will not let the pump overheat.

The pump and motor are mounted in an Australian galvanized four-wheel roll frame with large 13” pneumatic wheels, lifting hooks and lance rack incorporated into the design. The frame also allows for the unit to have the wheel removed and the be bolted down to a ute or truck.
The engine is mounted to a anti vibration plate that protects the machine from excessive vibrations from the Yanmar engine.

“A 60m ‘A’ Frame hose reel was bolted to the top of the frame with 20m of two wire high pressure hose. The hose was tested as per regulations for pressure cleaner hoses.The HCE exclusive Vega dual action trigger was fitted to a 1200mm Stainless Steel lance with a fixed 15 deg nozzle.”

“Specs at a glance:
3000 Psi @ 15lpm pump performance
Genuine Yanmar L100 Diesel Engine
Gearbox driven Comet Pump
Soft unloader with over pressure safety valve
1” Inlet Disc Filtration
Stainless Steel Control Box:
Deep Sea Controller
Emergency Stop
Four Pole Battery Isolator
Galvanized roll frame with lifting hooks
Stainless Steel 20L fuel tank
60m ‘A’ frame hose reel with 20m hose”
